More than two processes

next episode

Overview

Teaching: 10 min
Exercises: 15 min

Questions

Objectives

More complicated example:

Let’s look at secondmessage.f90, secondmessage.c
MPI programs routinely work with thousands of processors.
if rank == 0… if rank == 1… if rank == 2… gets a little tedious around rank=397.
More typical programs: calculate the ranks you need to communicate with, and then communicate with them.
Let’s see how that works.
Imagine procs in a line. Calculate left neighbour, right neighbour.
Pass a number (let’s use squared rank) to right neighbour, receive it from left.
C:

#include <stdio.h>
#include <mpi.h>

int main(int argc, char **argv) {
    int rank, size, ierr;
    int left, right;
    int tag = 1;
    double msgsent, msgrcvd;
    MPI_Status rstatus;

    ierr = MPI_Init(&argc, &argv);
    ierr = MPI_Comm_size(MPI_COMM_WORLD, &size);
    ierr = MPI_Comm_rank(MPI_COMM_WORLD, &rank);

    left = rank-1;
    if (left < 0) left = MPI_PROC_NULL;
    right = rank+1;
    if (right >= size) right = MPI_PROC_NULL;

    msgsent = rank*rank;
    msgrcvd = -999.;

    ierr = MPI_Ssend(&msgsent, 1, MPI_DOUBLE, right,tag, MPI_COMM_WORLD);

    ierr = MPI_Recv(&msgrcvd, 1, MPI_DOUBLE, left, tag, MPI_COMM_WORLD, &rstatus);

    printf("%d: Sent %lf and got %lf\n", rank, msgsent, msgrcvd);

    ierr = MPI_Finalize();
    return 0;
}

Fortran:

program secondmessage
use mpi
implicit none

    integer :: ierr, rank, comsize
    integer :: left, right
    integer :: tag
    integer :: status(MPI_STATUS_SIZE)
    double precision :: msgsent, msgrcvd

    call MPI_INIT(ierr)
    call MPI_COMM_RANK(MPI_COMM_WORLD,rank,ierr)
    call MPI_COMM_SIZE(MPI_COMM_WORLD,comsize,ierr)

    left = rank-1
    if (left < 0) left = MPI_PROC_NULL
    right = rank+1
    if (right >= comsize) right = MPI_PROC_NULL

    msgsent = rank*rank
    msgrcvd = -999.
    tag = 1

    call MPI_Ssend(msgsent, 1, MPI_DOUBLE_PRECISION, right, &
                   tag, MPI_COMM_WORLD, ierr)

    call MPI_Recv(msgrcvd, 1, MPI_DOUBLE_PRECISION, left, &
                  tag, MPI_COMM_WORLD, status, ierr)

    print *, rank, 'Sent ', msgsent, 'and recvd ', msgrcvd

    call MPI_FINALIZE(ierr)

end program secondmessage

Compile and run

mpi{cc,f90} -o secondmessage secondmessage.{c,f90}
mpirun -np 4 ./secondmessage

$ mpirun -np 4 ./secondmessage
3: Sent 9.000000 and got 4.000000
0: Sent 0.000000 and got -999.000000
1: Sent 1.000000 and got 0.000000
2: Sent 4.000000 and got 1.000000

Results of secondmessage

Implement periodic boundary conditions

cp secondmessage.{c,f90} thirdmessage.{c,f90}
edit so it `wraps around’: rank (size-1) sends to rank 0, rank 0 receives from size-1.
mpi{cc,f90} thirdmessage.{c,f90} -o thirdmessage
mpirun -np 3 thirdmessage

Implementperiodicboundary

In Fortran, that might look like this:

left = rank-1
if(left < 0) left = comsize-1
right = rank + 1
if(right >= comsize ) right =0

call MPI_Ssend(msgsent, 1, MPI_DOUBLE_PRECISION, right, tag, MPI_COMM_WORLD, ierr)
call MPI_Recv( msgrcvd, 1, MPI_DOUBLE_PRECISION, left,  tag, MPI_COMM_WORLD, status, ierr)

And similarly in C.
So what happens?

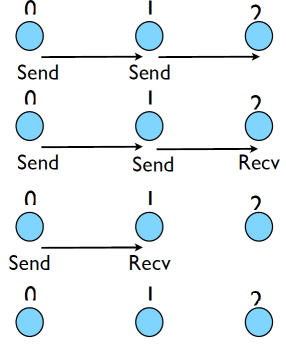

send recieve

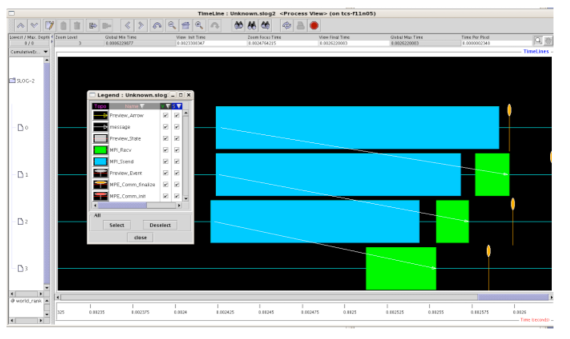

processview

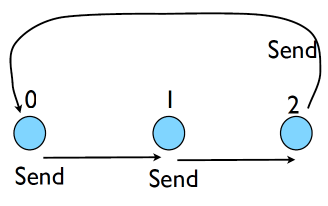

Deadlock

A classic parallel bug
Occurs when a cycle of tasks are for the others to finish.
Whenever you see a closed cycle, you likely have (or risk) deadlock.

deadlock

Big MPI Lesson #1

All sends and receives must be paired, at time of sending

Key Points

A typical MPI process calculates which other processes it will communicate with.

If there is a closed loop of procs sending to one another, there is a risk of deadlock.

All sends and receives must be paired, at time of sending.
